Economy Injector

2 oz Plastic Injector Item#76002

A Highside Economy System Injector is used for introducing any liquid into the low side of a charged hermetic system.

  • Entirely reusable
  • Constructed of rugged plastic for economical long-life
  • Designed for use with any standard manifold gauge and requires no extra valves or fittings
  • Drip-proof, no-spill design takes the mess out of maintenance

The Highside Economy Injector helps prevent the venting of refrigerants into the atmosphere, as well as the introduction of air into an operating system. It can be used on sealed operating systems to avoid shutdowns.

SKU: economy-system-injector Category:

Description

2 oz Plastic Injector Item #76002

INSTRUCTIONS

USE WITH STANDARD MANIFOLD GAUGE.

  • Remove the threaded cap and fill the System Injector completely with the liquid to be introduced into the system to avoid any trapped air.

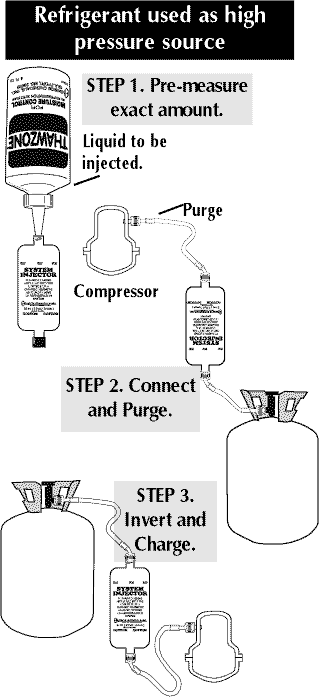

  • Connect the System Injector as shown in the manifold gauge diagram and purge the lines.
  • Open the valves on the manifold gauge very slowly and let the pressure from the high side push the liquid into the low side of the system.

CAUTION: ALWAYS FOLLOW THE PRODUCT MANUFACTURER’S INSTRUCTIONS CONCERNING QUANTITY TO USE AND SPECIFIC PROCEDURES WHEN INJECTING LIQUIDS INTO AN OPERATING SYSTEM.

Holds 59ml, or 2 fl. oz. Made in the U.S.A.

FOR INTRODUCING ANY LIQUID INTO THE LOW SIDE OF A CHARGED HERMETIC AIR CONDITIONING OR REFRIGERATION SYSTEM:

  1. The maximum working pressure is 250 PSIG always connecting the system injector to the low side of an operating system.
  2. Never leave the system injector connected to the hoses. After use always disconnect and disassemble.
  3. Before removing the cap, always check for any pressure buildup, by depressing the valve core depressor.
  4. Always store the system injector with the cap loose to prevent thread binding and pressure buildup.

Recommended for use with Trace, Trace 2, Thawzone, and Acid Neutralizer.

Product PDF

Product PDF
